Complex Factors

The "Complex factors" section is used for special tracking; eg: Engine starts, RIN (Retirement Index Number), Lifting cycles, Winch cycles, etc.

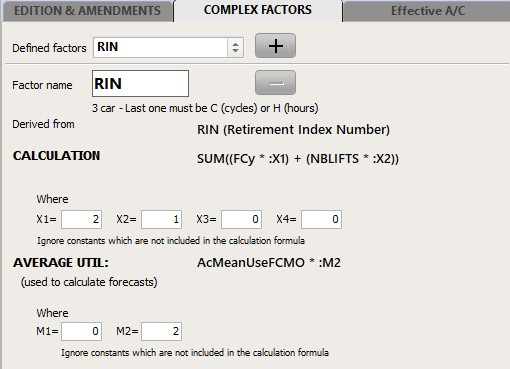

Example of a Maintenance Program including RIN (Retirement Index Number) tracking:



clip0554





When a RIN index is defined for a Protocl, AMS will show RIN data in several places:



M.Requirement module:

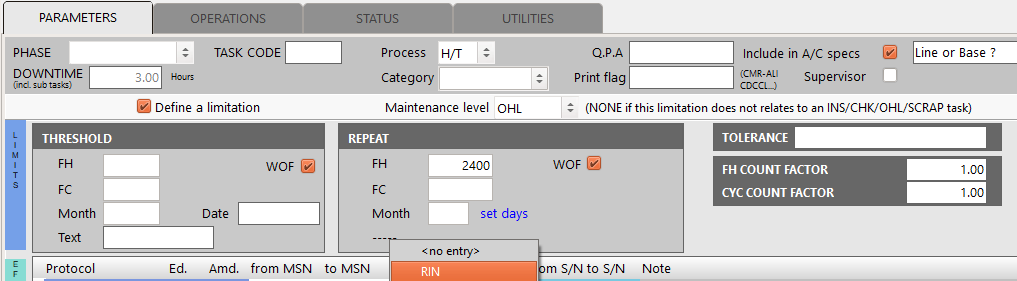

You can define a RIN interval on any component position (effective to a protocol having RIN tracking):clip0555





M.Work module:

When a RIN interval is defined, the next due RIN index is displayed on the WO

clip0556



Installation / Removal TAGs

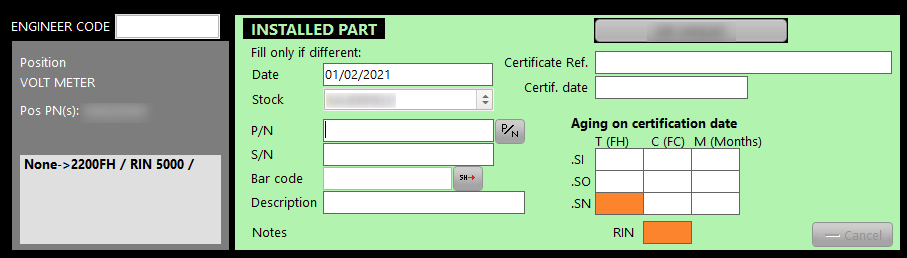

Displays the RIN requirement (on the left) and a new field to enter the current RIN

clip0557



Part / Batch

The curent RIN of the component is displayed

clip0558
