The Consumptions tab calculates the fluid consumptions for the selected range of flights.

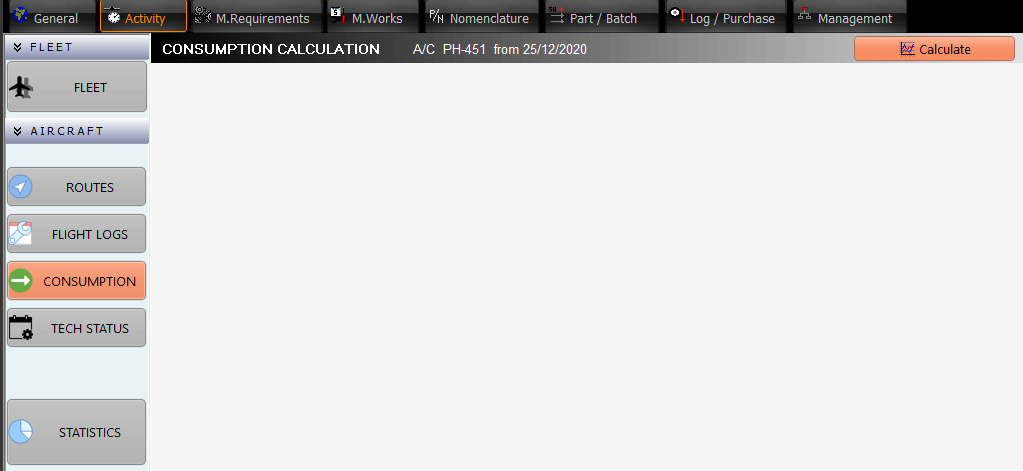

Click on the calculate button to display the next picture:
The following fluid consumptions are calculated:
- Engine oil per flight hour (for each engine)
- APU oil per aircraft flight hour
- Hydraulic per flight hour (for each hydraulic system)
- Fuel per flight hour (Kg / Airborne time & Kg / Block time)
Note: Engine oil, APU oil and hydraulic consumption units are not specified (as the units used on the TLB). The Unit of Measure is the same as the unit used on your technical log book (usually a can of 1/4 US gallon)

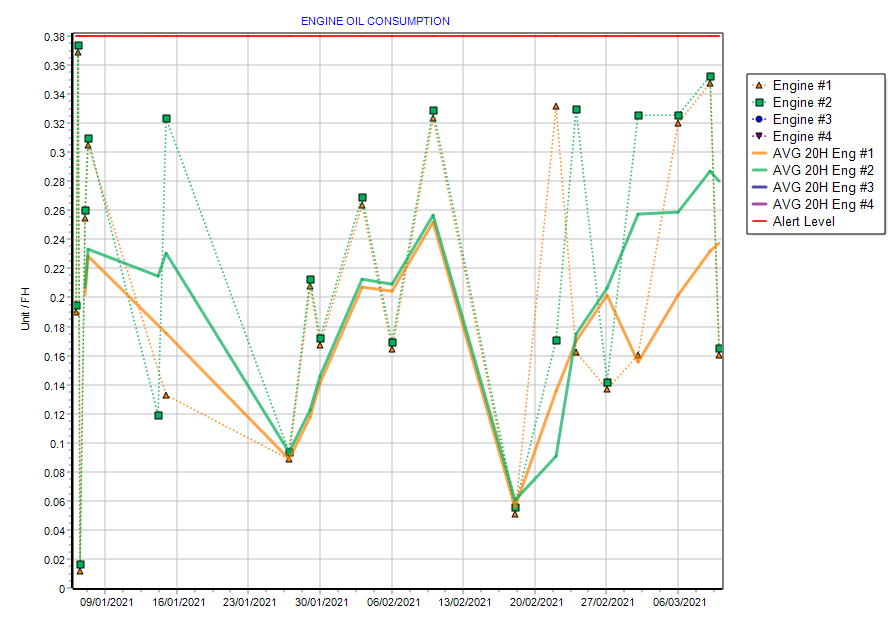

Engine Oil consumption definitions:
•The instantaneous consumption (doted lines) is : [the oil (U/S Quart by default) added] / [the number of flight hours (airborne) flown since last replenishment]
•The 20h average is : [the oil added (U/S Quart by default) over the last 20 flight hours] / 20
The report button located at the bottom can be used to preview / print all fluid consumptions.
